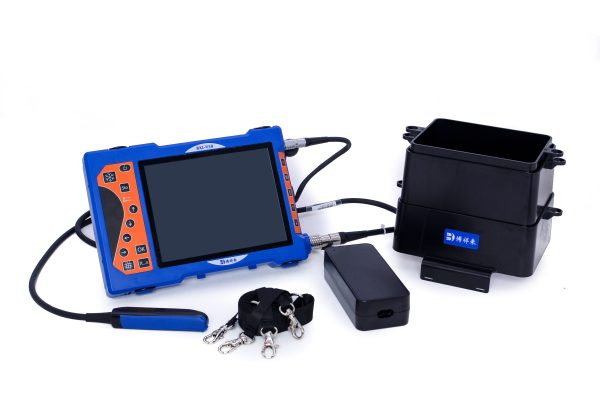

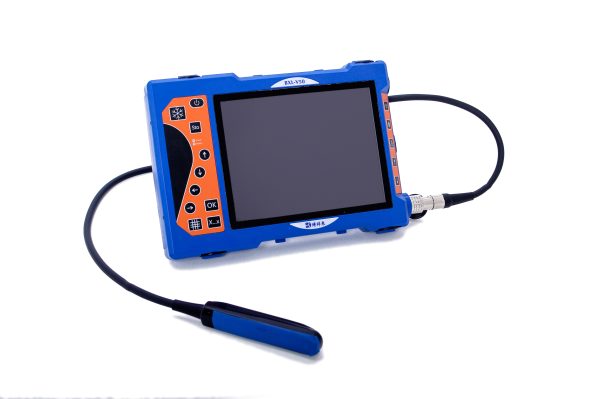

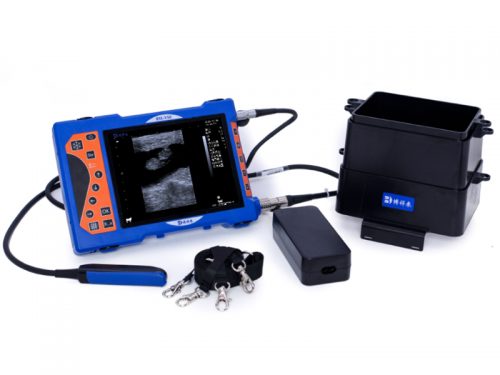

Portable Veterinary Ultrasound scancer BXL-V50

BXL-V50 Technical Parameters
1. The whole machine is waterproof and dustproof, and the waterproof level is IP56; strong and durable

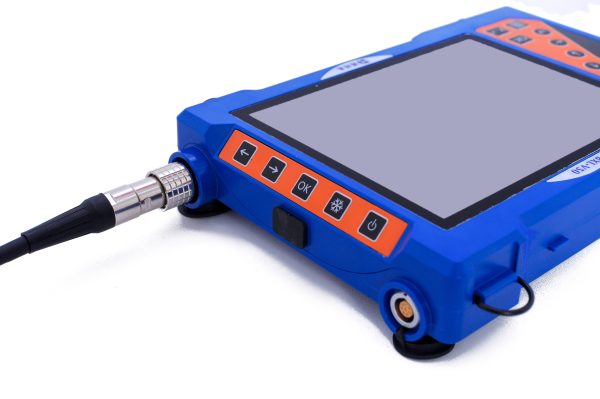

2. Left and right buttons (convenient for left and right hand operation)
3. Work for more than 7 hours on one charge
4. Display: 8.0-inch high-definition LCD display;
5. Measurement of back fat, eye muscle, automatic back fat thickness measurement, lean meat rate measurement function
6. Probe upgrade, no appendages

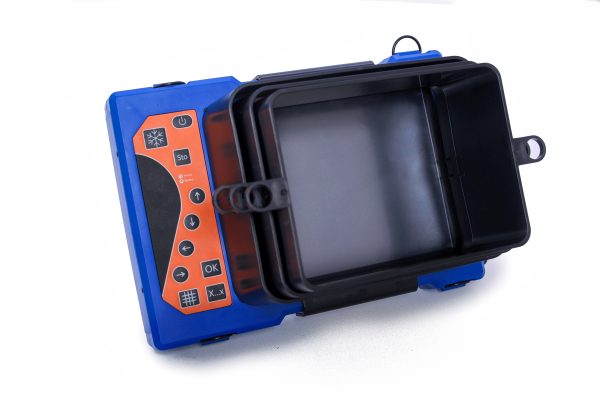

7. Professional customized sun visor, adjustable
8. One-key shutdown protection function
9. Position markings: beef cattle, dairy cows, buffaloes, goats, sheep, alpaca, pigs, cats, dogs, etc., no less than 45 kinds of animal position markings are optional;
10. Grayscale: 256;
11. Multiple fast measurement methods;
12.16 Number of channels;
13. Storage: One key storage; and support U disk storage preview, etc.
14. Host rated input: DC14V 3.0A;
15. Adapter output: DC14.0V 3.0A;
16. Network power supply: 100-240V~1.2-0.6A Frequency: 50-60Hz;
17. Patented products, more than three patents
18. Weight: the weight of the whole machine is 1.2KG
19. Image frame rate: 60
20. Image U disk/TF card storage and browsing function;
21. Pseudo-color: a variety of pseudo-color processing;
22. Multiple system preset functions;
23. Host size: about 206 x 120 x 35 (mm, length x width x height);
24. Grid setting quick measurement function;
25.Host memory≥8G

The Boxerly BXL-V50 portable veterinary ultrasound scanner can detect early pregnancy, uterine inflammation, ovarian swelling, and fetal count in common livestock such as pigs, cows, sheep, horses, and donkeys.

Portable Veterinary Ultrasound BXL-V50(图2)
Portable Veterinary Ultrasound BXL-V50(图3)
Portable Veterinary Ultrasound BXL-V50(图4)
Portable Veterinary Ultrasound BXL-V50(图5)
Portable Veterinary Ultrasound BXL-V50(图6)
Portable Veterinary Ultrasound BXL-V50(图7)
Portable Veterinary Ultrasound BXL-V50(图8)
Portable Veterinary Ultrasound BXL-V50(图9)
Portable Veterinary Ultrasound BXL-V50(图10)
Portable Veterinary Ultrasound BXL-V50(图11)
