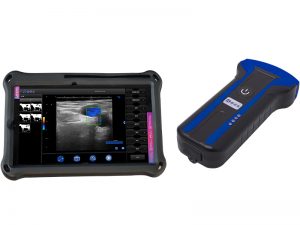

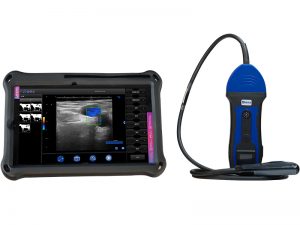

Wireless Veterinary Ultrasound Machine BXL -s100

BXL-S100 Technical Specifications
Working time: ≥5 hours
Wireless transmission: supported
Image display modes: B, 2B, 4B, B/M, M
Harmonic imaging: two levels
Frequency: 5-10MHz
Gain adjustment: 0-255
Dynamic range adjustment: 0-15
Transmit power: 0-3.
Scanning depth: Maximum depth of rectal linear array probe ≥27cm.
Gain: Eight-stage adjustable
System language: Chinese, English
Grayscale: 256
Channels: 16
Position markers: ≥60
One-key measurement of backfat thickness.
Storage: Storage and preview of static images, storage and playback of dynamic cine images ≥255 frames, expandable
Power supply: 100-240V~0.8A
Weight: 300g (including probe)
Image frame rate: 60 frames per second
Host size: 174×70×28mm

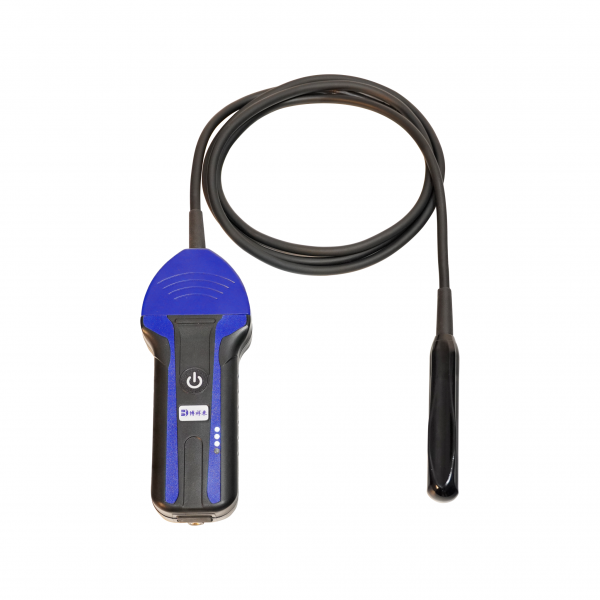

Optional configuration: 6.5MHz rectal linear probe

The BXL-S100 is a waterproof and dustproof wireless ultrasound system that provides clear imaging for detecting pregnancy as well as follicular and corpus luteum development in cattle and horses.



无线兽用超声机BXL-s100(图1)
无线兽用超声机BXL-s100(图2)
无线兽用超声机BXL-s100(图3)
无线兽用超声机BXL-s100(图4)
无线兽用超声机BXL-s100(图5)
Wireless Veterinary Ultrasound Machine BXL -s100(图6)
Wireless Veterinary Ultrasound Machine BXL -s100(图7)
Wireless Veterinary Ultrasound Machine BXL -s100(图8)
Wireless Veterinary Ultrasound Machine BXL -s100(图9)
Wireless Veterinary Ultrasound Machine BXL -s100(图10)
